SUNSON EU 30-100KW Solar System Configuration |
||||
|---|---|---|---|---|
| Model | EU-SYD-30K | EU-SYD-50K | EU-SYD-80K | EU-SYD-100K |
| 615W Solar Panel | 48PCS | 80PCS | 128PCS | 160PCS |
| DC Combiner Box | 1PC | 1PC | 1PC | 1PC |
| Hybrid Inverter | 30KW×1 | 50KW×1 | 80KW×1 | 50KW×2 |
| LiFePO4 Battery | 60KWH | 112KWH | 120KWH | 224KWH |
| MC4 Connector | 20Pairs | 20Pairs | 30Pairs | 30Pairs |
| PV cable 1×4MM² | 600M | 600M | 800M | 1000M |
| Solar Installation Bag | 1 Set | 1 Set | 1 Set | 1 Set |
| Mounting Structure | Customized 1 Set Based On Roof/Ground Area (Free Design) | |||

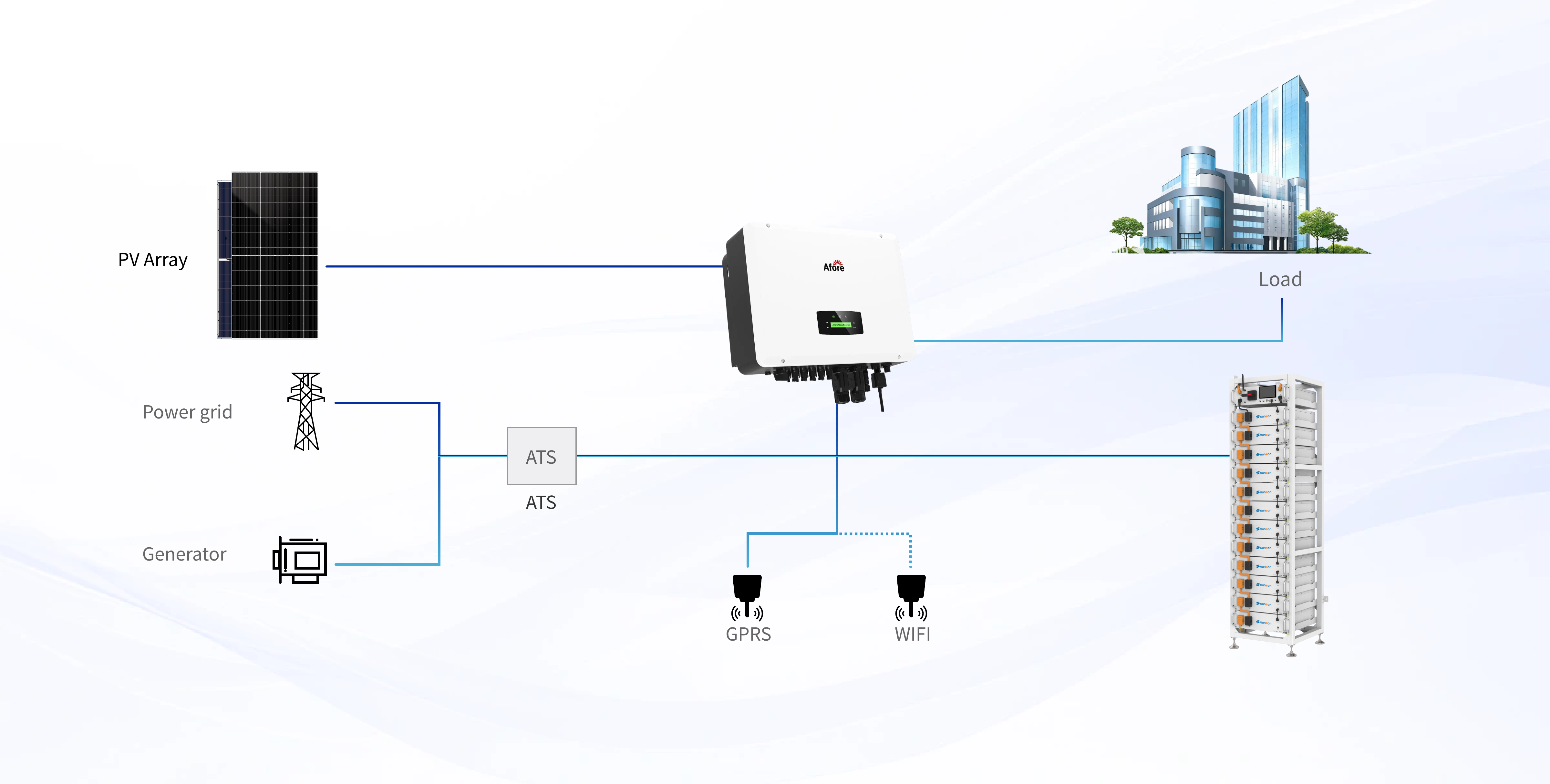

System Components
|
N Type TOPCON Solar Panel
Tier 1 Brand N Type 450-720Watt Available |
 |
 |

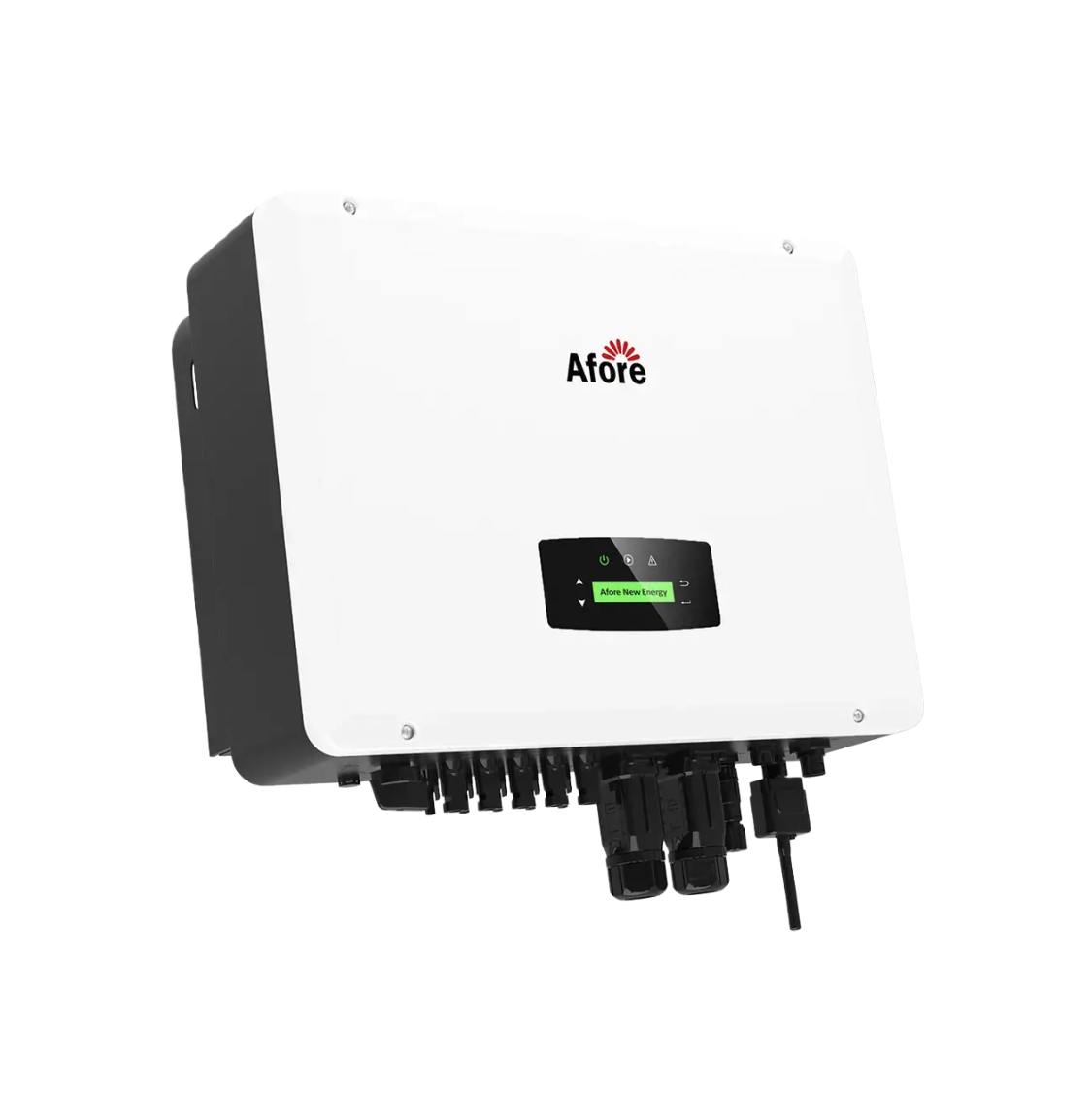

30KW Hybrid Inverter
Dual MPPT, IP65 Grade WIFI Monitor/Platform iCloud |
|
Lithium Battery 51.2V 100/314Ah HV Outdoor Cabinet LiFePO4 Battery Warranty: 5 Years, Design Life Span: 10 Years+ DOD 80% 6000 Times Cycles |
 |
 |
Mounting Brackets Type: Metal Roof, Tile roof, Flat Roof Concrete Ground system, Spiral Ground System Material: Aluminum alloy, Galvanized steel Easy Installation: Modular designs for quick assembly and flexibility. Wind Speed: Max 60M/S Weather Resistance: Engineered to withstand wind, snow, and seismic loads. |
|
DC Combiner Box IP Rating: IP66 Rated Voltage: 1000VDC Inside Accessories: DC Breaker, Surge Protect Device, Fuse |
 |
 |
Online Monitoring System |
Why Choose SUNSON ENERGY?
✔ End Power Anxiety — Experience total energy independence with 24/7 reliable electricity.
✔Maximize Your ROI — Cutting-edge technology guarantees the highest efficiency and savings.
✔ Invest with Confidence — A maintenance-light system backed by 10+ years of dependable power.
✔ Control at Your Fingertips — Smart monitoring and auto-optimization put you in command.
SUNSON Project Cases
